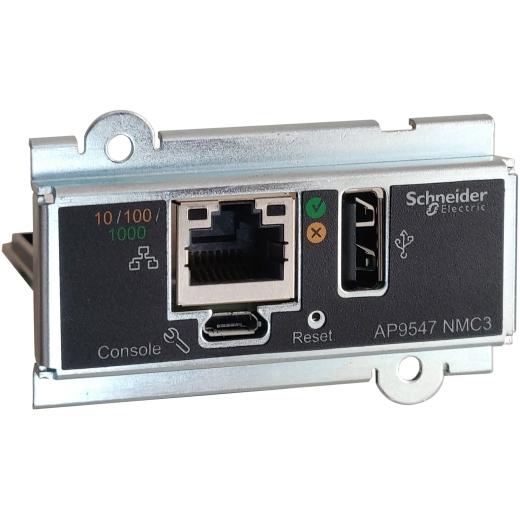

The Network Management Card for Easy UPS 3 Series enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. The high-speed processor provides a fast and powerful experience offering gigabit ethernet connectivity and simultaneous multiple user logins. Best-in-class security compliance keeps sensitive data secure. The Network Management Card includes a 1-year Secure NMC Subscription which provides automatic access to new features, enhancements, and advanced support to ensure the most resilient, secure and sustainable IT infrastructure.
Federal Communications Commission (FCC), ICES, RoHS, VCCI
Product type
Network management card
Compatibility
Easy UPS 3 Series
Network
Ethernet interface type
Gigabit Ethernet, Fast Ethernet
MIB support
PowerNet MIB
Ethernet LAN
Yes
Security algorithms
HTTPS, SNMP, SNMPv3, SSH
Cabling technology
10/100/1000
Web-based management
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Management protocols
BACnet
Design
Product colour
Black, Metallic
Certification
AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2, FCC Class A, ICES-003, VCCI class A
Internal
Yes
Reset button
Yes
Component for
Uninterruptible power supply (UPS)
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-15 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Width
52 mm
Depth
80 mm
Height
44 mm
Weight
50 g
Package width
170 mm
Package depth
240 mm
Package height
50 mm
Package weight
300 g
Security
Security algorithms
HTTPS, SNMP, SNMPv3, SSH
Protocols
Management protocols
BACnet
Packaging data
Package width
170 mm
Package depth
240 mm
Package height
50 mm
Package weight
300 g
Manual
Yes
Cables included
USB
Packaging content
Manual
Yes
Cables included
USB
Performance
MIB support
PowerNet MIB
Security algorithms
HTTPS, SNMP, SNMPv3, SSH
Web-based management
Yes
System requirements
Compatibility
Easy UPS 3 Series
Certificates
Certification
AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2, FCC Class A, ICES-003, VCCI class A
Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase, remotely monitor and manage the UPS
Description
The Network Management Card for Easy UPS 3 Series enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. The high-speed processor provides a fast and powerful experience offering gigabit ethernet connectivity and simultaneous multiple user logins. Best-in-class security compliance keeps sensitive data secure. The Network Management Card includes a 1-year Secure NMC Subscription which provides automatic access to new features, enhancements, and advanced support to ensure the most resilient, secure and sustainable IT infrastructure.
