Kingston Technology 32GB DDR5 5600MT/s ECC Unbuffered DIMM CL46 2Rx8

Name: Kingston Technology 32GB DDR5 5600MT/s ECC Unbuffered DIMM CL46 2Rx8 1.1V 288-pin 16Gbit Micron H
SKU: KSM56E46BD8-32MH
Price: 1227.503101 EUR
Availability: InStock

Additional Information

Details

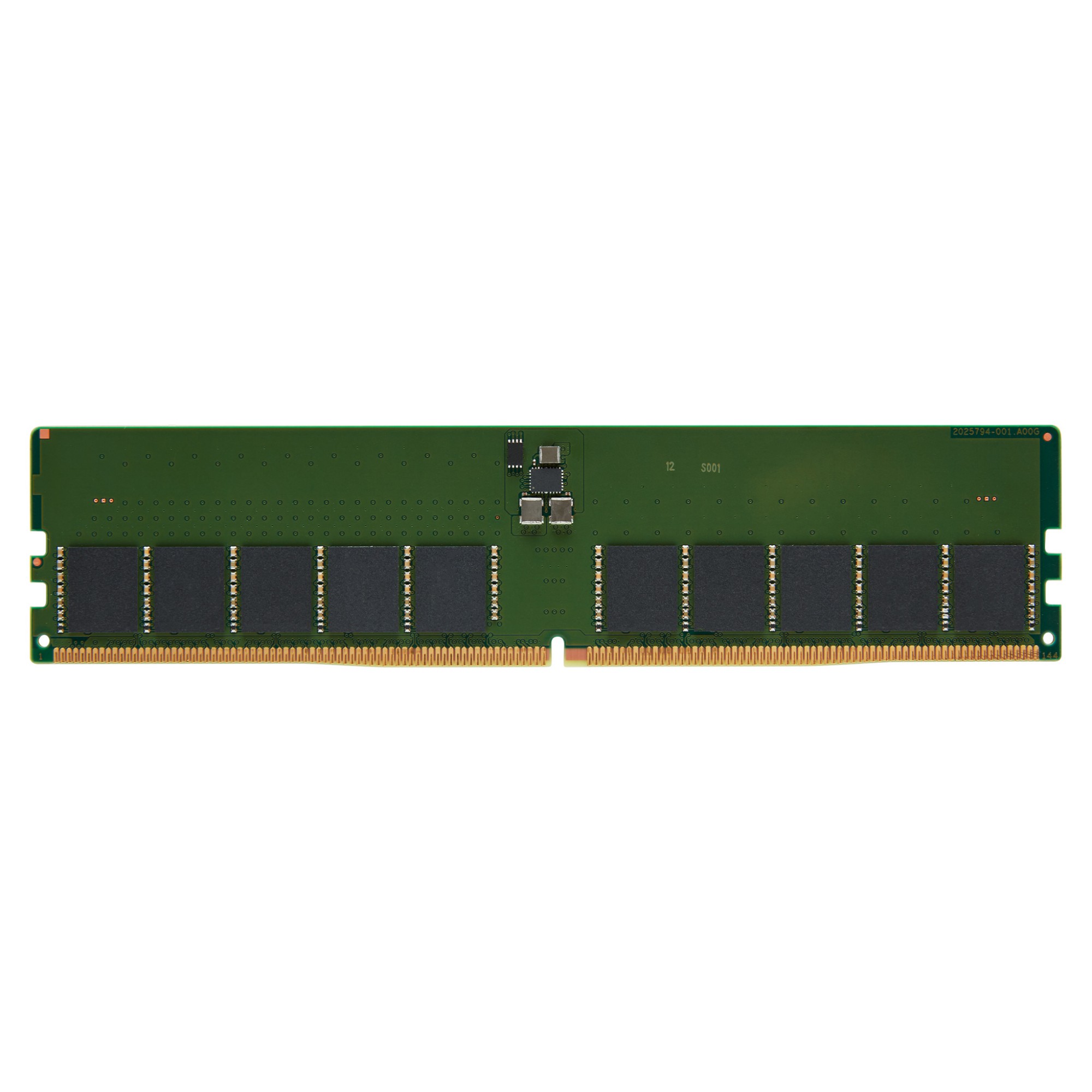

Kingston's KSM56E46BD8-32MH is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Full Specification

SKU

KSM56E46BD8-32MH

EAN

0740617361285

Specification

Power
Memory voltage	1.1 V
Design
Product colour	Green
Technical details
Product colour	Green
Doesn't contain	Halogen
Compliance certificates	RoHS
Memory
Buffered memory type	Unregistered (unbuffered)
Row Precharge Time (TRP)	16
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Row cycle time	48 ns
Refresh row cycle time	184 ns
Row active time	32 ns
Memory ranking	2
ECC	Yes
Internal memory type	DDR5
Programming power voltage (VPP)	1.8 V
Features
On-Die ECC	Yes
Buffered memory type	Unregistered (unbuffered)
Row Precharge Time (TRP)	16
Product colour	Green
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Row cycle time	48 ns
Refresh row cycle time	184 ns
Row active time	32 ns
Memory ranking	2
ECC	Yes
Internal memory type	DDR5
Programming power voltage (VPP)	1.8 V
Memory data transfer rate	5600 MT/s
Operational conditions
Operating temperature (T-T)	0 - 95 °C
Storage temperature (T-T)	-55 - 100 °C
Sustainability
Doesn't contain	Halogen
Compliance certificates	RoHS
Other features
Doesn't contain	Halogen

Manufacturer

Kingston Technology

PDF Url

https://objects.icecat.biz/objec

Short Description

32GB DDR5 5600MT/s ECC Unbuffered DIMM CL46 2Rx8 1.1V 288-pin 16Gbit Micron H

Description

Kingston's KSM56E46BD8-32MH is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
